OPTO-EDU A63.7220 Field Emission Transmission Electron Microscope, 200KV, 1500000x

Accelerating Voltage

200 kV, Factory Aligned at 80 kV and 200kV
Electron Source

High Brightness Schottky Field Emitter
Probe Current

≥ 1.5nA/1nm Probe
TEM Line Resolution

0.23 nm
FEG Gun Vacuum

< 1x10-6Pa,
Goniometer

Fully Eccentric Goniometer With All 5-Axis Motorized
Place of Origin

China
Hàng hiệu

CNOEC, OPTO-EDU
Chứng nhận

CE, Rohs
Model Number

A63.7220
Tài liệu

Sổ tay sản phẩm PDF
Minimum Order Quantity

1 pc
Giá bán

FOB $1~1000, Depend on Order Quantity
Packaging Details

Carton Packing, For Export Transportation
Delivery Time

5~20 Days
Payment Terms

T/T, West Union, Paypal
Supply Ability

5000 pcs/ Month

OPTO-EDU A63.7220 Field Emission Transmission Electron Microscope, 200KV, 1500000x

button button

Nhận giá Liên hệ với bây giờ

Magnification 1x~1500000x, TEM Line Resolution 0.23nm, TEM Information Limit 0.2nm
Accelarting Voltage 80~200kV, Eccentric Goniometer 5-axis Motorized, Compu Stage Double-tilt Holder
Oil Free Vacuum Pump, Gun Vaccum<1x10-6Pa, Column Vaccum<5x10-5Pa
Bottlm Mounted CMOS 20M, 5120x3840, Including Computer, Software, 1 Year Warranty
Probe Current ≥1.5nA/1nm, Beam Current ≥50nA Available at 200kV, Upgradable STEM, Cryo Samples, Tomography, EDS

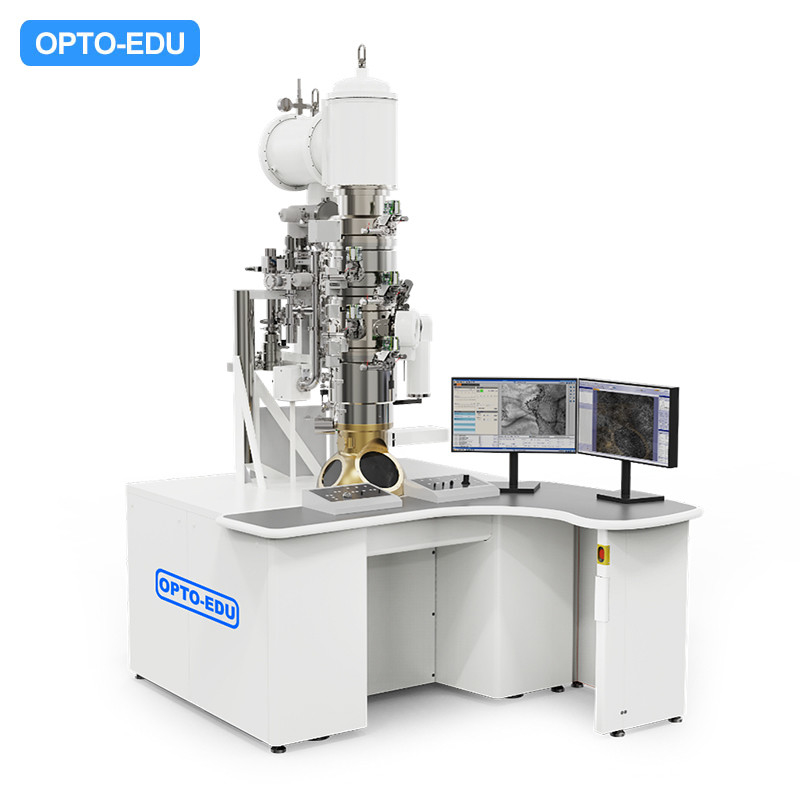

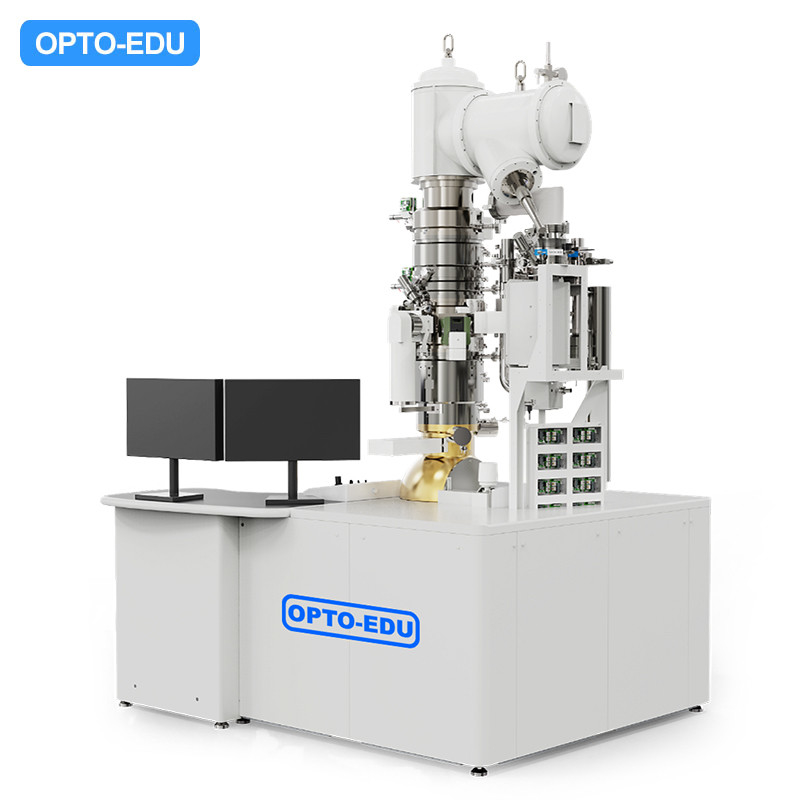

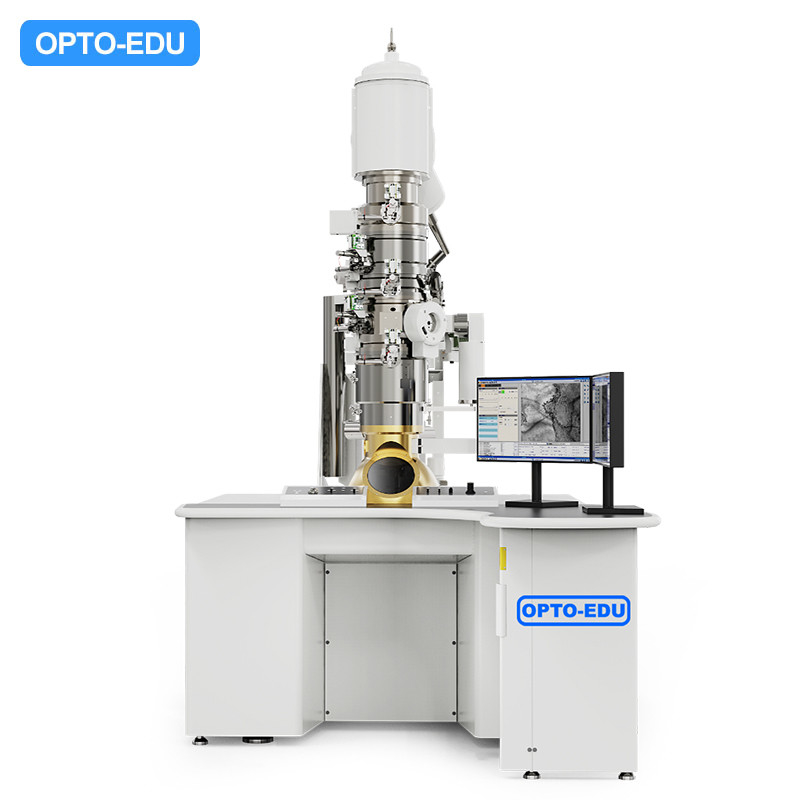

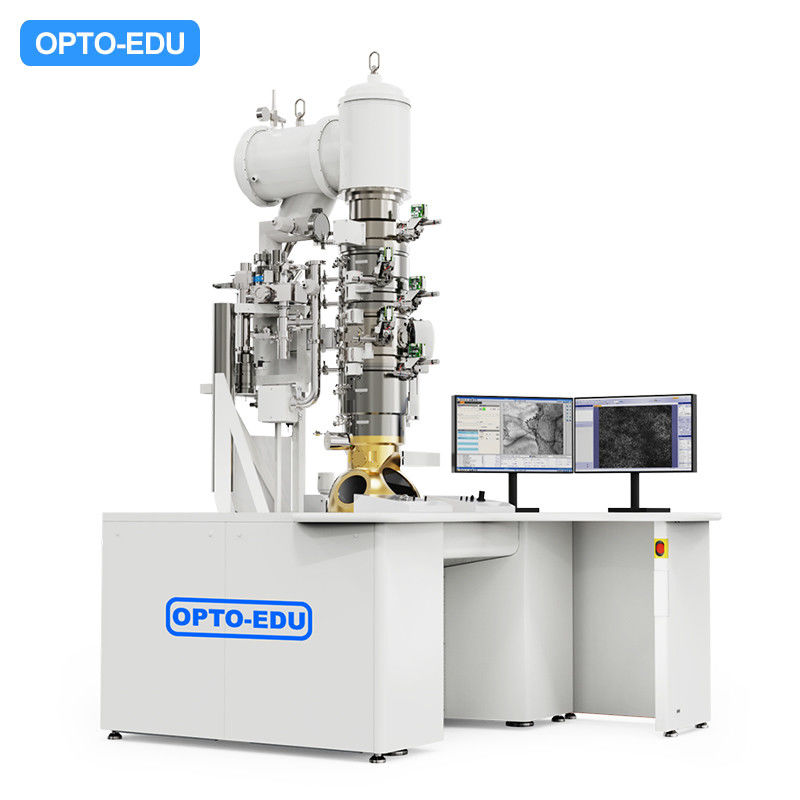

A63.7220 is a Field Emission Transmission Electron Microscope (TEM), 200KV, 1500000x, independently developed & designed for materials science, semiconductors and other fields. This electron microscope is designed to be easy to operate and highly stable, and can provide solutions such as in-situ, high-resolution and microcrystal electron diffraction.

Friendly Design	Refined appearance and UI design, brand-new vision, meet the operation needs of users of different levels; provide operation video tutorials.
New Lens Barrel Design	It adopts a four-stage condenser system design, which can be independently controlled, which is conducive to controlling the electron beam convergence angle and intensity for various imaging studies; it is also equipped with a large pole shoe, which can perform in-situ characterization under a variety of conditions.
High Quality Imaging	The electron microscope is equipped with a highly sensitive CMOS camera, which can easily obtain high-quality images.

Field Emission Transmission Electron Microscope (TEM), 200KV, 1500000x
Accelerating Voltage	200 kV, Factory Aligned at 80 kV and 200kV
Electron Source	High Brightness Schottky Field Emitter
Probe Current	≥ 1.5nA/1nm Probe
Beam Current	Maximum ≥ 50nA At 200kV
TEM Line Resolution	0.23 nm
TEM Information Limit	0.2 nm
Magnification	20x to 1500000x.
FEG Gun Vacuum	< 1x10-6Pa,
TEM Column Vacuum	<5x10-5Pa
Goniometer	Fully Eccentric Goniometer With All 5-Axis Motorized
Camera	20M Speed Enhanced Bottom Mounted CMOS Camera EMSIS XAROSA 5120x3840
Stage	Compu Stage Double-tilt Holder
Stage	X ±1mm, Y ±1mm, Z ±0.35mm, α ±25°, β ±25°
Upgradable	STEM, Cryo Samples, Tomography, EDS Analysis
Warranty	Warranty One (1) Year.
Optional Accessories
Installation	On-Site Installation & Operational Training Service Pack Optional
STEM	PNDetector Annular STEM Detector, Advanced Module ADV-STEM (Including STEM-HAADF and BF)
EDS	Bruker XFlash 7T30S
Tomography Holder	1..Sample size: φ3mm.
	2. Alpha tilt range: ±70°.
	3. Resolution: ≤0.34nm (in any direction).
	4. Drift rate: <1.5nm/min.
	5. Field of view: ≥1.6mm@70°tilt.
Cryo-Sample Holder	Cryo-Sample holder:
	1. Sample Size: φ3mm.
	2. Alpha Tilt Range: ±70°.
	3. Resolution: ≤0.34nm (In Any Direction).
	4. Drift Rate: <1.5nm/min.
	5. Field of View: ≥1.6mm@70°tilt.
	Molecular Pumping Station
	1. Ultimate Vacuum Better Than 10e-7 mbar.
	2.Multi-functional: Sample And Rod Storage, In-situ Rod Leak Testing.
